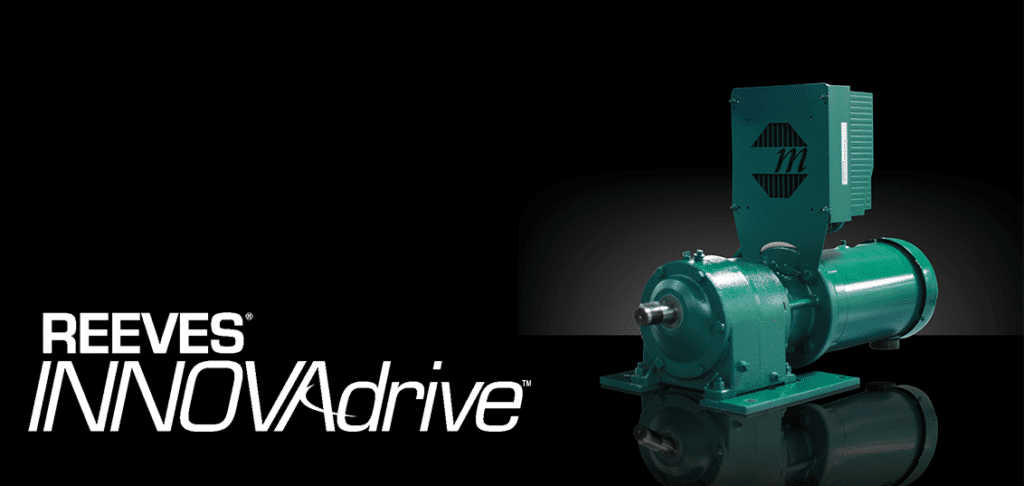

REEVES® INNOVAdrive™

The REEVES® INNOVAdrive™ is a pre-engineered electronic variable speed drive package that interfaces easily to modern electronic control systems. A drop-in replacement for an existing REEVES® MotoDrive® or Ultima®, the INNOVAdrive™ provides energy savings as well as process improvements. It is shipped pre-assembled with our Master helical gear reducer, an inverter duty TEFC motor, a state-of-the-art AC variable frequency drive and pre-engineered mounting adapter.

Features:

  • Custom designed to meet and exceed your current MotoDrive®/Ultima® performance, accounting for the current application.
  • Identical mounting dimensions and output face location, with a custom plate designed when needed. The output shaft diameter and length will be slightly different.
  • Lower maintenance costs on a compact VFD package, with no more high-wear belting and pulleys.
  • Energy savings and increased process control due to reduced starting voltage over most mechanical drives.
  • A modern, power dense and rugged Master APG helical gear reducer.
  • Available in 1/4 to 7.5 HP sizes with output speeds from 14 to 4200 RPM.
  • Available with long-term storage anti-rust treatment so you can plan for future replacements.
  • Available in Washdown Epoxy and Explosion-Proof options (with remote mounted VFD).
  • REEVES® INNOVAdrive™ is born to run and built in our Greenville, SC facility.

REEVES® INNOVAdrive™ Brochure
